Contemporary cars are not run by the driver only. The cars nowadays have high safety technology which assists in avoiding accidents, identify hazards and assist in making more safer decisions when driving. ADAS calibration is one of the most significant steps to follow after changing a windshield.

Most motorists believe that when they have been installed with a new windshield, they are done. As a matter of fact, the majority of forward-facing cameras and sensors can be directly attached to the windshield. Even in case of a careful work, when the glass is removed and replaced, the camera position may slightly change. This minor change has the power to influence the way the system determines distance and identifies the lane markings and obstacles.

That is why the calibration of ADAS could not be optional. It is a safety requirement.

ADAS standpoint and the need to rely on accuracy.

ADAS are known as Advanced Driver Assistance Systems. These systems include:

• Forward collision warning
• Autopilot emergency braking.
• Lane departure warning
• Lane keeping assist
• Traffic sign recognition
• Adaptive cruise control
• Walker and bicycle identification.

All these functions are dependent on cameras, radar or lidar, which have to have a perfect alignment of the camera. Such misalignment of a few millimeters would alter the perception of the road by the vehicle.

ADAS calibration also involves replacing a windshield back to factory settings after the replacement.

Why the replacement of windshield has an influence on the camera setting.

When changing the camera module the technicians will take the old window out and attach the old camera module to the new one. Although in cases of the reuse of the mounting bracket, the position surface and angle may be slightly different.

Even this minor difference may result in:

• Incorrect lane positioning
• Delayed braking response
• False collision alerts
• Malfunctioning following distance.
• Poor accuracy of pedestrian detection.

Due to the fact that such systems are based on precise measures such recalibration should be done after installation.

Any neglect of ADAS calibration is a risk to a car owner in the form of a safety technology that is not fully functional to read the environment.

How calibration actually works

There are two main calibration methods used by manufacturers. Some vehicles require one, while others require both.

Calibration type	How it works	When it is used	Main requirement
Static calibration	Vehicle remains stationary while special targets are positioned in front of it	Camera-based systems after glass or bracket replacement	Controlled lighting, level surface, precise target placement
Dynamic calibration	Vehicle is driven on clearly marked roads while software learns sensor alignment	Systems that need real-world driving data	Clear lane markings, proper speed, suitable road conditions

Both methods allow the system to re-learn its reference points and ensure accurate sensor data.

What would happen when calibration is not substituted?

There are so many vehicles that do not display warning lights when camera alignment is not there. It is still functioning, but it is possible that the system cannot do it safely.

In the absence of the appropriate adjustment, the following problems can arise:

• Lane assist is driving onto the wrong lane.
• The emergency braking does not work as it should be.
• Impact warnings lose credibility.
• The adaptive cruise control errs on judgment of distance.
• Trust by the driver on safety features is reduced.

This is precisely why ADAS calibration can be regarded as an obligatory safety procedure as opposed to an optional service.

In case of constant need of calibration

Calibration should be done in case:

• Windshield replacement has been done.
• The front camera is either taken off or switched off.
• The tray on which the camera is mounted has either been repaired or changed.
• Repair was done on the structure, in the front part of the vehicle.
• There is the appearing of dashboard warning messages associated with driver assistance.

In such cases at any time, ADAS calibration will put the system back to the original working accuracy.

The institutionalized calibration of the professionals

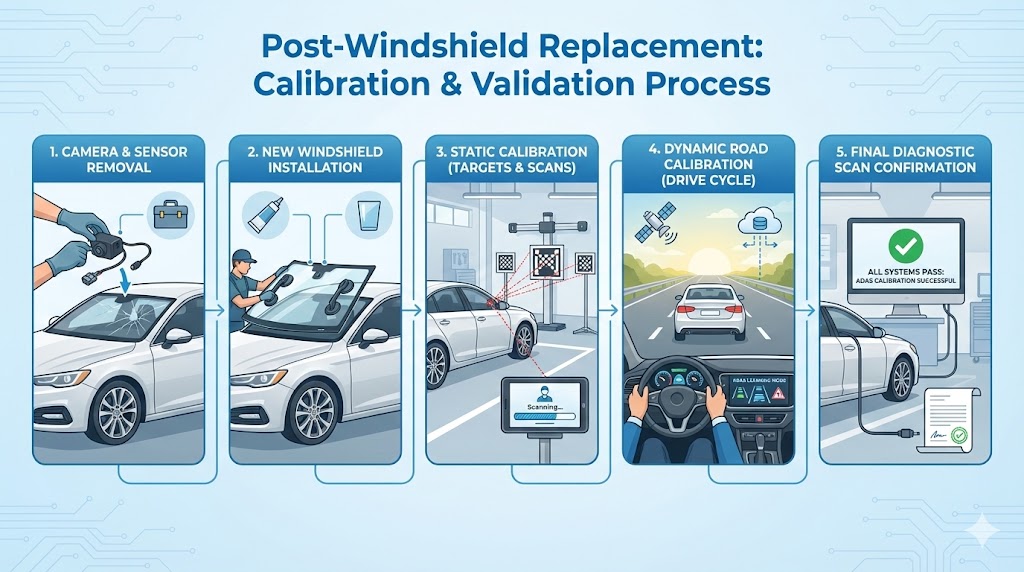

A standard workflow of a professional technician is:

• Check the windshield installation area and the area of the camera mounting.
• Check the ride height car and tire pressure.
• Call hook diagnostic software that is factory approved.
• Carry out some dynamic or static alignment processes.
• Conduct a final system scan to ensure the successful calibration.

The lighting, floor level and target distance are all moderately regulated in the process to create positive environmental conditions. The slightest mistakes made during installation may give wrong outcomes and that is why skilled technicians and adequate equipment are necessary.

Calibration Time

The majority of calibrations: require 30 to two hours of time, depending on:

• Vehicle brand and model
• The number of driver assistance features fitted.
• Calibration procedure necessary.

Although this introduces more time to the repair, it would safeguard the precision of all the safety functions that rely on the front camera.

The reason why calibration is worthwhile

There are drivers, who do not like calibration to be written on their invoice. Nonetheless, recalibration is much more defensive than one part. It secures the overall safety system of the car.

Properly identified sensors can help:

• Reduce accident risk
• Improve reaction timing
• Keep proper object identification.
• Propriety support braking intervention.

Otherwise, the technology that saves you is safeguarded under ADAS calibration.

Concepts related and supporting to understand better

To be clear on the topics, one might want to comprehend some related terms:

• Clearance camera orientation.
• Radar- camera sensor fusion.
• lane recognition algorithms.
• Software used to classify objects.
• Diagnostics of vehicle safety system.
• OEM repair procedures
• Quality control -glass replacement.

All these together will make sure that your vehicle has reliable driver assistance systems even after being repaired.

Final Thought

The replacement of windshield does not only change the glass. It has a direct impact on the location of the camera which controls most of the key safety features of your car. Calibration will bring back the factory accuracy, hidden system errors will be avoided and your vehicle will keep protecting you as it was intended. Calibration should be treated as an investment in safety not an extra.
